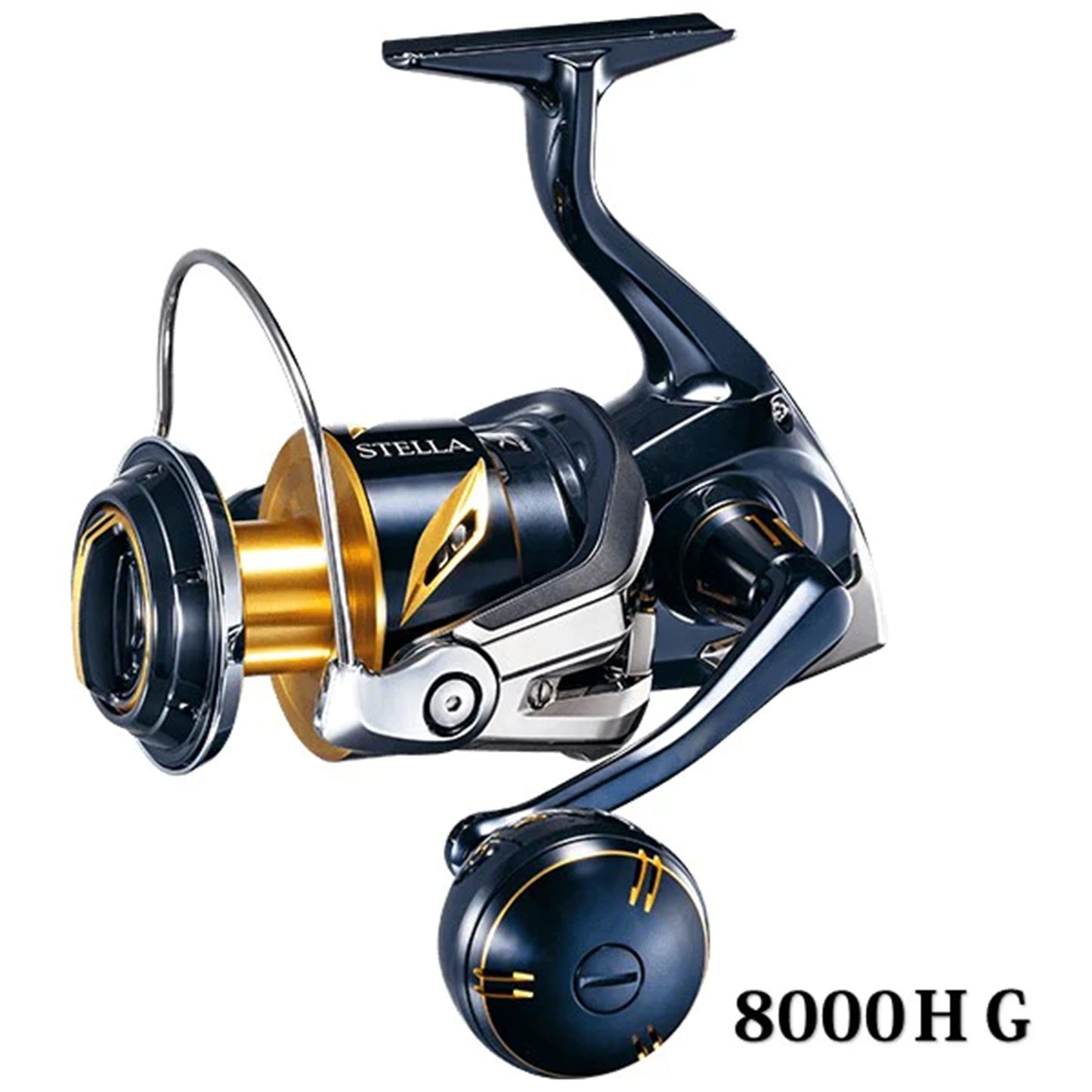

SHIMANO/'19 Stella SW

An X protect structure that is installed in the stopper bearing part of the previous model and greatly contributed to the highly waterproof performance.

In addition to the stopper bearing section, the NEW Stella SW is also equipped with the X protect structure in addition to the stopper bearing section, further improving the waterproof performance.

Like the stopper bearing, the transmitted entry route of seawater is physically blocked with a seal member as shown in the figure, and it has evolved into a structure that can withstand high water pressure. The bearing inside the line roller is protected from a harsh environment, and the durability of the bearing is 10 times more than the conventional product compared to conventional products.

* According to Shimano comparison test

4000HG gear ratio: 5.7 Practical/maximum drag force: 7kg/11kg Self-weight: 355g thread (PE): No. 2-200m maximum winding length (1 turn handle): 93cm

4000XG gear ratio: 6.2 Practical/maximum drag force: 7kg/11kg Self-weight: 355g thread (PE): No. 2-200m maximum winding length (1 turn handle): 101cm

5000HG gear ratio: 5.7 Practical/maximum drag force: 10kg/13kg self-weight: 420g thread roll amount (PE): No. 2 -350m maximum roll length (1 rotation of handle): 97cm

5000XG gear ratio: 5.7 Practical/maximum drag power: 10kg/13kg Self-weight: 420g thread roll amount (PE): No. 2 -350m Maximum winding length (handle 1 rotation): 105cm

6000PG gear ratio: 4.6 Practical/maximum drag force: 10kg/13kg Self-weight: 425g thread (PE): No. 3 -300m maximum winding length (1 turn handle): 83cm

6000HG gear ratio: 5.7 Practical/maximum drag force: 10kg/13kg Self-weight: 425g thread (PE): No. 3 -300m maximum roll length (handle 1 rotation): 103cm

6000XG gear ratio: 6.2 Practical/maximum drag force: 10kg/13kg Self-weight: 425g thread roll amount (PE): No. 3 -300m maximum roll length (1 turn handle): 112cm

8000PG gear ratio: 4.9 Practical/maximum drag force: 18kg/25kg Self-weight: 625g thread roll amount (PE): No. 4 -300m Maximum roll length (1 rotation of handle): 94cm

8000HG gear ratio: 5.6 Practical/maximum drag force: 18kg/25kg self-weight: 625g thread (PE): No. 4 -300m maximum winding length (1 rotation of handle): 107cm

10000PG gear ratio: 4.9 Practical/maximum drag force: 18kg/25kg Self-weight: 670g thread roll amount (PE): No. 5 -300m Maximum roll length (1 rotation of handle): 102cm

14000XG gear ratio: 6.2 Practical/maximum drag force: 18kg/25kg Self-weight: 675g thread roll amount (PE): No. 5 -300m Maximum roll length (handle 1 rotation): 134cm

14000pg Gear ratio: 4.9 Practical/maximum drag force: 18kg/25kg Self-weight: 675g thread roll amount (PE): No. 5 -300m Maximum roll length (handle 1 rotation): 106cm

18000HG gear ratio: 5.7 Practical use/maximum drag force: 17kg/28kg Self-weight: 875g thread roll amount (PE): No. 5 -500m Maximum roll length (handle 1 rotation): 129cm

20000PG Gear ratio: 4.4 Practical/maximum drag force: 17kg/28kg Self-weight: 885g thread (PE): No. 6 -500m maximum roll length (1 rotation of handle): 104cm

30000 gear ratio: 4.4 Practical/maximum drag force: 17kg/25kg Self-weight: 975g thread roll amount (PE): No. 8 -600m maximum winding length (1 rotation of handle): 131cm

* XG = Extra high gear specification, HG = high gear specification, PG = power gear specification. * # 8000 ~ # 3000 veil does not return the handle. * IPX8 equivalent (body part)

* There is no stopper switching mechanism.

* No. 8000 is only for the PE line.

△ The maximum volume of the maximum winding is calculated by the outermost division in front of the spool.
